5L Medical Oxygen Concentrator

  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
  • Elite Series Oxygen Concentrator
Elite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen ConcentratorElite Series Oxygen Concentrator

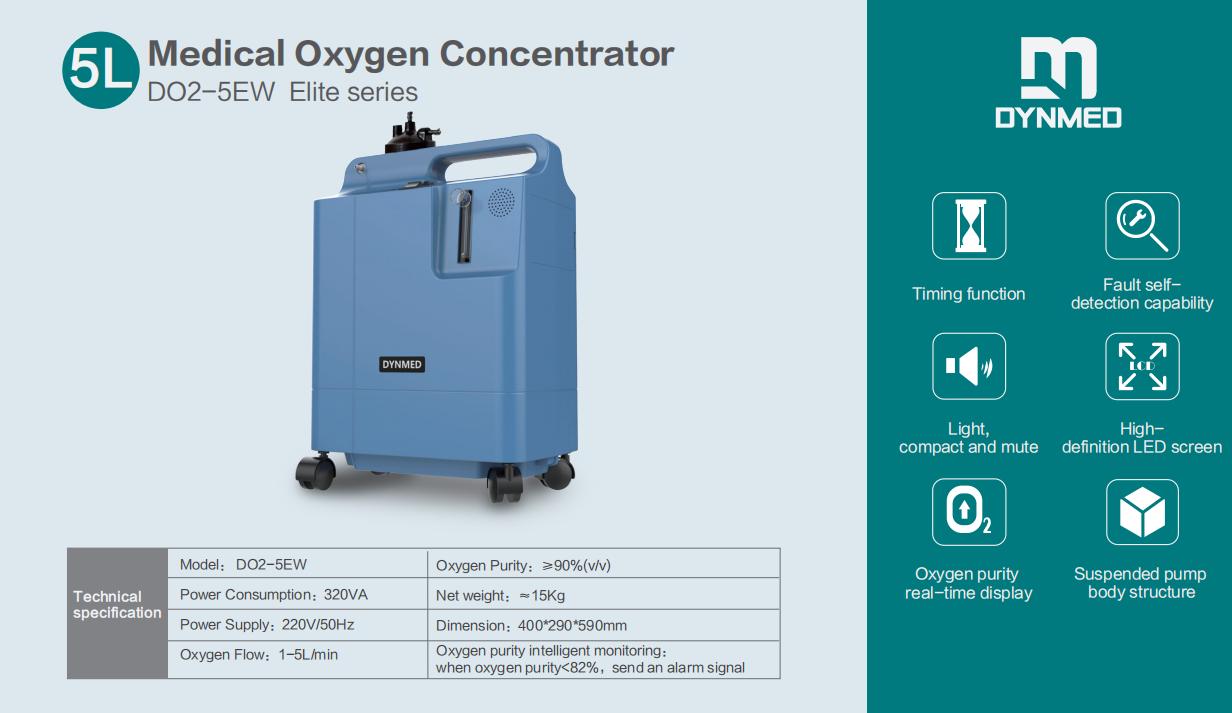

Elite Series Oxygen Concentrator

  • 93+/-3% purity
  • 5L
  • four alarm system
  • optional nebulizer function
  • Product description: Elite Series Oxygen Concentrator
  • INQUIRY
Item: DO2-5E

Brief Introduction:


These models can produce average 93% purity oxygen to meet 5liter flow requirements of hospital, clinic, home use, nursing centre. It can stably work in 24 hours a day, always maintain oxygen purity at average 93% at 5L/min flow. And in future, it only needs few maintenance of the main machine among its whole lifetime.


Features:


>>24 hours work continuously

>>Four alarm systems: low oxygen concentration alarm, power off alarm, pressure circulation fault alarm and compressor fault alarm

>> AVG oxygen purity: 93%±3%

>> Low sound level: 42dB (A)

>> Net weight: only 14kg

>> Strong ABS shell, fashion design.


Technical data

Oxygen flow

1~5 LPM

Output pressure

50-70 kPa

Power supply

AC 230V, 50Hz or 115V, 60Hz

Input power

300VA (AVER)

Oxygen concentration

1~5 LPM 93%±3%

Operation Environment

Temperature 5°C ~40°C

Humidity≤80%

Atmospheric pressure:86kPa~106 kPa

OCSI indicator

>82% green;

<82% red

N.W.

14kg

Noise

42dB(A)

Size

38cm×26cmx58 cm(L×W×H )

Operation regular

Time cycle/pressure rotation

Transportation/storage condition

Temperature-20°C ~55°C

Humidity≤90%

Atmospheric pressure:86kPa~106 kPa

Equipment class&Type

Class II

B
